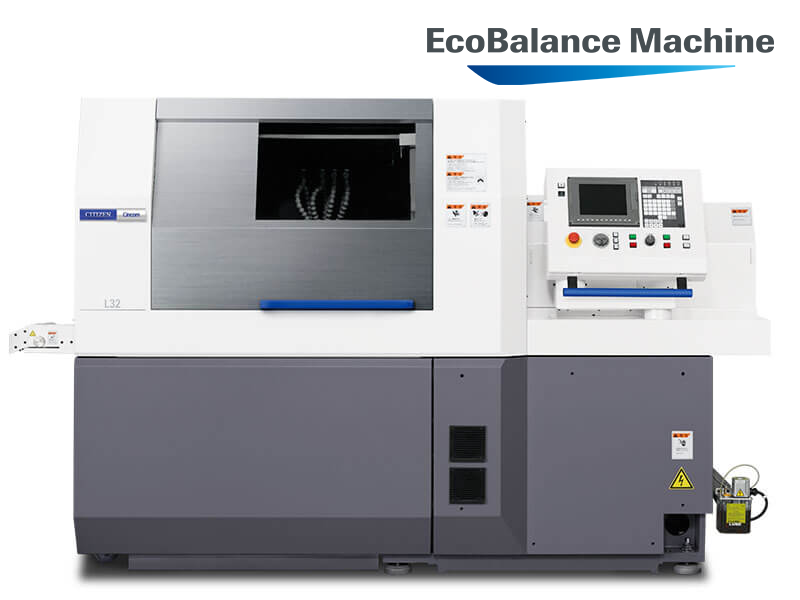

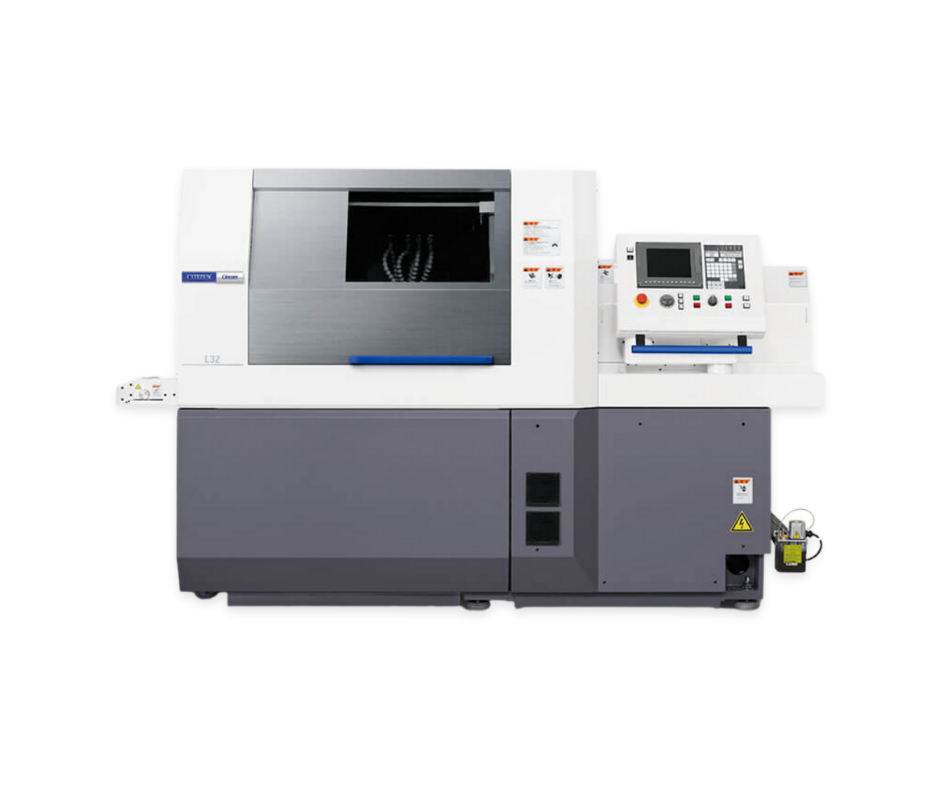

Cincom L32 VII

L32 VII: Now with Windows®-Based Control

Upgraded to Full Servo System

The L32 utilizes a “Full servo system”. Even the chuck clamping or workpiece collecting movements are executed by servo motors. This reduces idle time which is common in hydraulic and other electromechanical devices. This not only results in less idle time but also less power consumption, less maintenance and less operating costs of the machine.

  • Main Spindle (Built-In Spindle Motor): 1 degree indexing/C-Axis Control (Standard)
  • Back Spindle (Built-In Spindle Motor): 1 degree indexing/C-Axis Control (Optional)
  • Main Spindle through hole ID: 36mm [1.41”] (Previous L32: 33mm [1.29”])
  • High Power Live Tool Motor: 1.0KW [1.33HP] (Previous L32: 0.75KW [1HP])

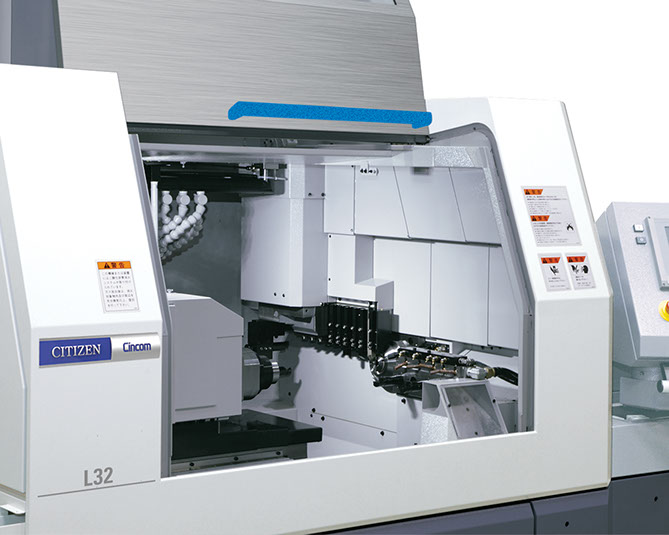

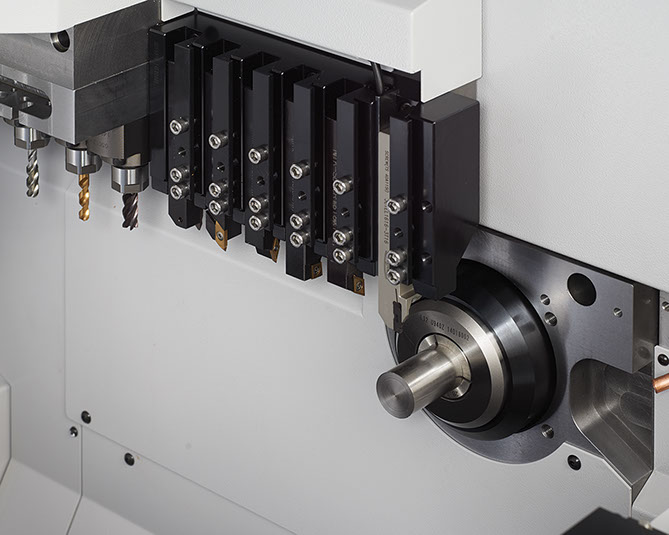

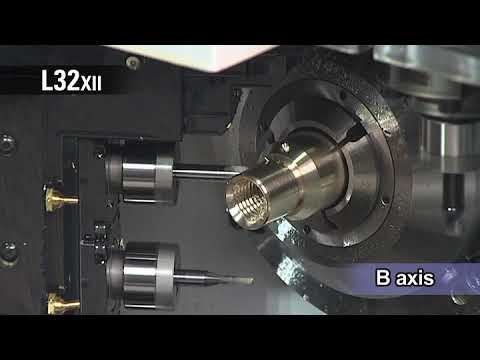

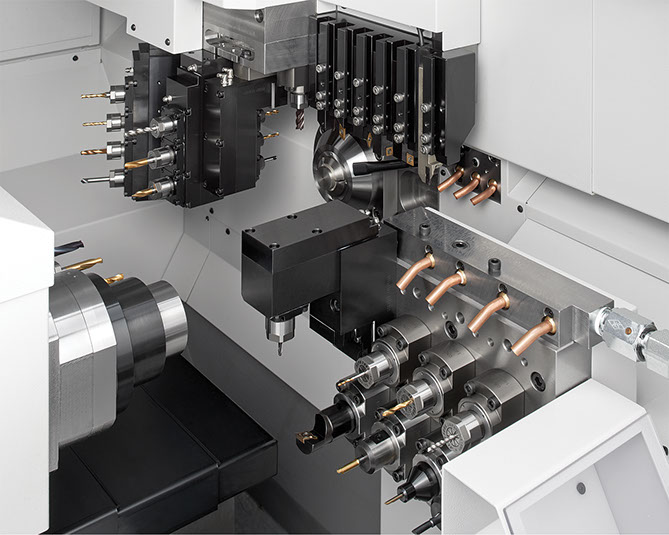

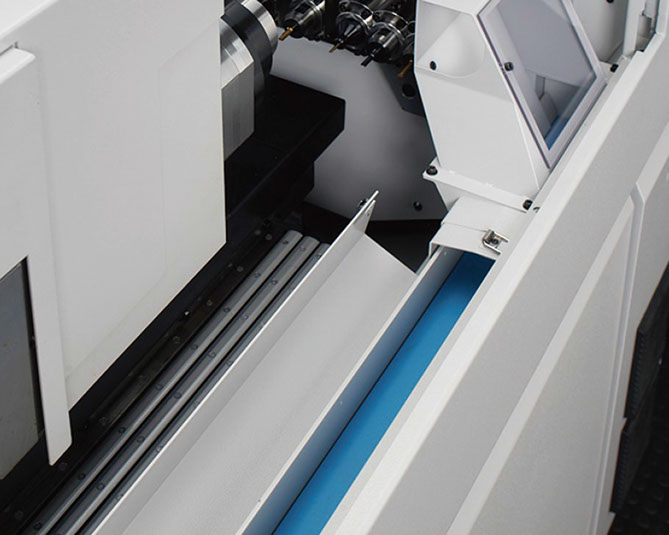

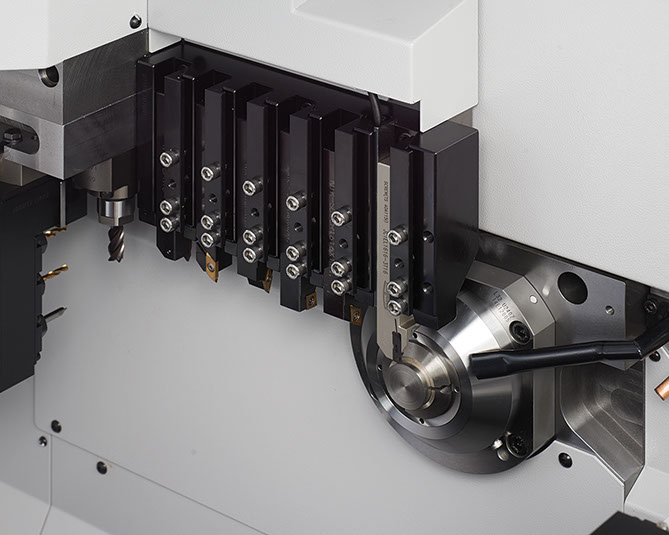

  • Maximum number of Mountable Tools: 20 as standard (22 is available by mounting the optional 4-ID Sleeve Holder)
  • Turning Tools: 5

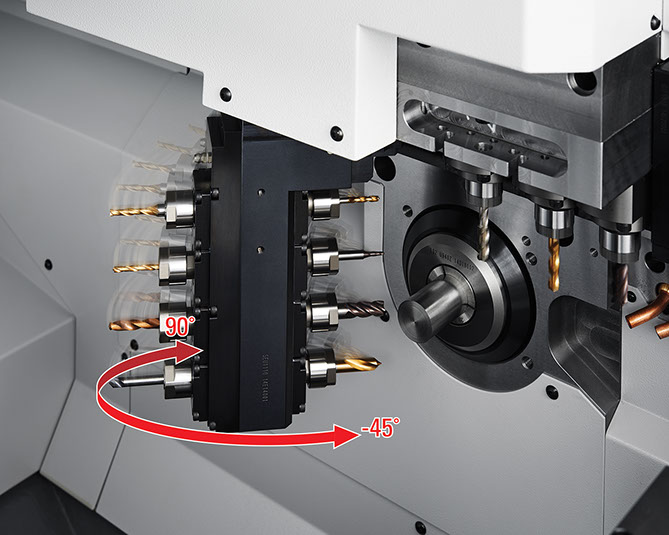

    Live Tool Spindles: 4
    ID Tools: 6 (3-Front/3-Back)
    Back ID Tool: 5
  • Windows-based NC Unit

The machine is equipped with a higher performance CPU than previous Windows based machines. Shorter computing time and higher speed macros achieve less cycle time.

FEATURES:

Synchronous-Superimposed Operation
Whirling Attachment
Cincom Online

Download the Cincom L32 brochure:
L32.pdf
(940 KB)

Cincom L32 VII

Specifications
Typical Parts
Space-Saving Design

Less preparation/cycle time by new functions

  • High speed program check function (option)
Program can be run in Machine Lock Mode
Maximum 16 times faster than regular speed
Estimate for cycle time is shown after running program
  • High speed threading function (option/under development).
  • The threading in high revolution speed is available without longer incomplete thread.
  • High speed rigid tapping function (option/under development). Less cycle time by high speed backward movement.
Machine Specifications
Maximum machining diameter 1.25"
Maximum machining length per chucking 12.5"
Maximum front drilling diameter .47"
Max. front tapping diameter (with tap and die) M10
Spindle through-hole diameter 1.41"
Main spindle speed 200-8,000 min-1
Rotary tool spindle speed 200-4,500 min-1
Max. chuck diameter of the back spindle 1.25"
Maximum workpiece length for the front side collection from the back spindle 5.9"
Back spindle speed 200-7,000 min-1
Max. tool capacity
Number of tools to be mounted Max. 20 tools (22 tools optional)
Turning tools on the gang tool post 5
Rotary tools on the gang tool post 4
Tools for front drilling on the gang tool post 3 (4 optional)
Tools for back drilling on the gang tool post 3 (4 optional)
Tools for back drilling on independent tool block 5
Motors
Main spindle drive 3.7/5.5 KW
Back spindle drive 1.5/2.2 KW
Tool spindle drive 1 KW
Cutting oil 0.4 KW

Typical Parts

For parts up to 1.25" diameter x 12.5" long per chucking.

  • Contouring
  • Threading
  • Milling
  • Slotting
  • Cross Work
    Drilling
    Off center drilling
    Tapping
    Reaming
  • End Work
    Milling
    Drilling
    Tapping
    Reaming
    Boring

Machine Dimensions

*A and L dimensions vary depending on bar feeder type

Max. machine height: 70.5 in.

Units in inches


All specifications are subject to change without prior notice.

This product is subject to the export control laws of the United States and other countries. A license may be required prior to export, re-export or transfer of these products. Contact us for further information.

Terms and Conditions
