Cincom M16

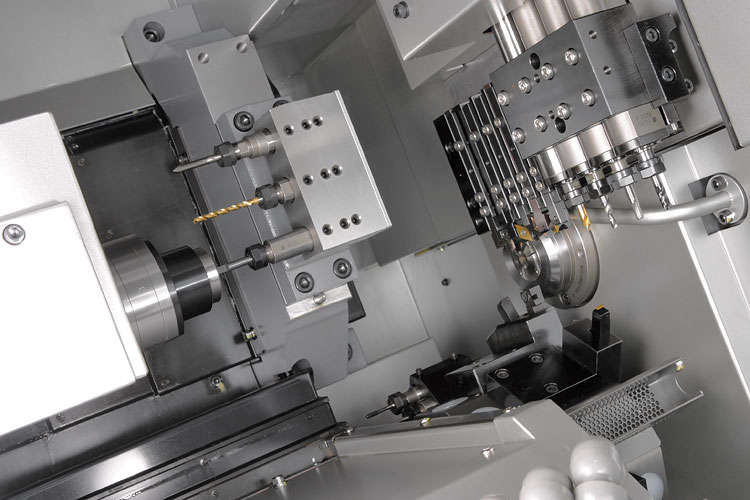

Combines tool turret versatility with gang tool speed

  • Shorter production cycles with no loss of precision and versatility

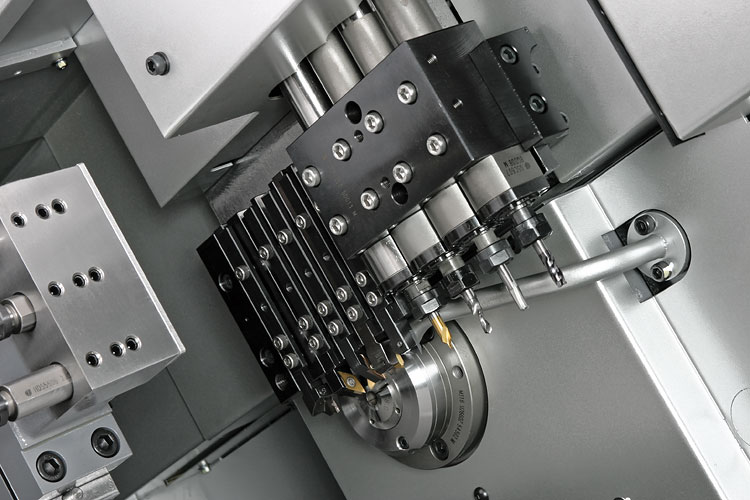

  • Live tools at any turret location, and 3 gang locations
  • Indexing by high speed servo
  • Y axis gang tool motion

Extra Axes for Precision and Versatility

  • 13 programmable axes
  • A axis for robotic arm, workpiece pick-off, in-process gaging, automatic tool measurement and more.

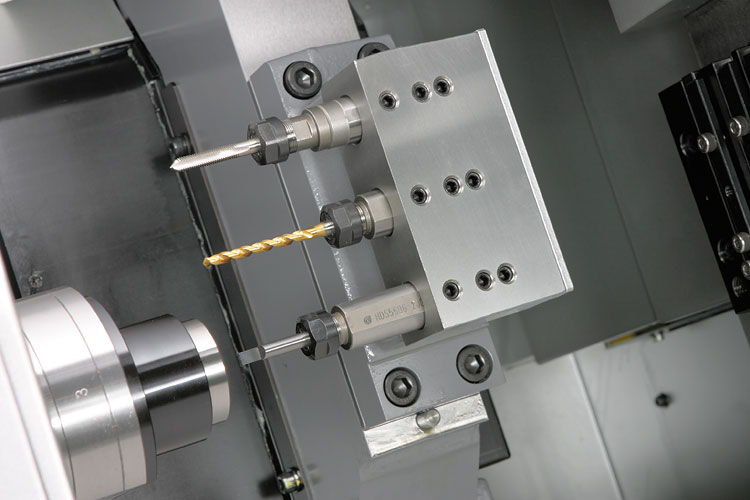

  • Front and back work performed simultaneously

Designed for Maximum Convenience

  • Low turret position and 45° slant improves accessibility
  • PC-based CNC controller

FEATURES:

Synchronous-Superimposed Operation
Cav Bar Feeder
Whirling Attachment
Cincom On-Line

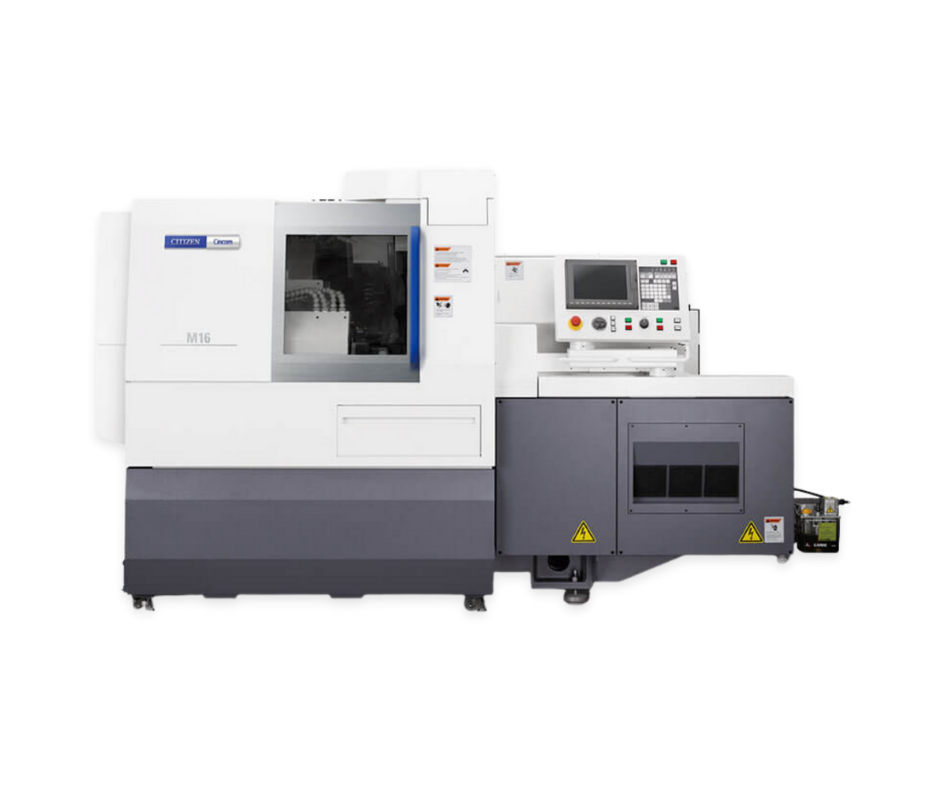

Cincom M16

Axis Movement
Specifications
Typical Parts
Space-Saving Design

TOPAxis Movement

TOPMachine Specifications
Max. diameter .6"
Length/chucking 7.8"
Mountable tools 18
Spindle motor 5 hp
Spindle speed 10,000 rpm
Back spindle speed 6,000 rpm

*More possible with 1/2 index tools

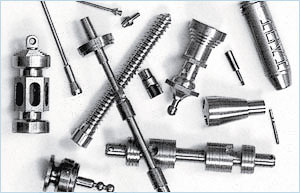

TOPTypical Parts

For parts up to 1.25" diameter x 12.5" long per chucking.

  • Contouring
  • Threading
  • Milling
  • Slotting
  • Cross Work
    Drilling
    Off center drilling
    Tapping
    Reaming
  • End Work
    Milling
    Drilling
    Tapping
    Reaming
    Boring

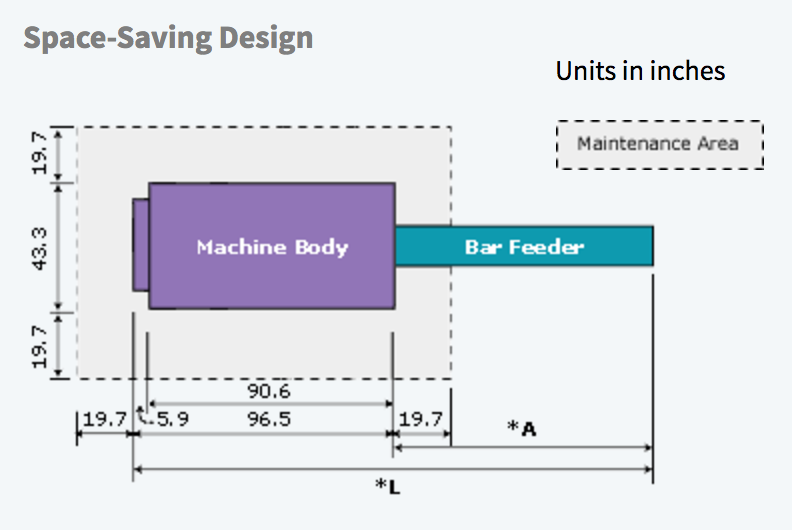

TOPSpace-Saving Design

*A and L dimensions vary depending on bar feeder type

Units in inches


All specifications are subject to change without prior notice.
