MIYANO BNA-42GTY

Designed for accuracy and long tool life

BACK TO OTHER MIYANO MODELS

Machine Information

Miyano BNA-42GTY

Miyano BNA-42GTY

The BNA-42GTY is configured with two spindles, one turret, two Y axes, gang tools and X3 axis to back spindle, the BNA-42GTY can mount up to 45 tools.

Featuring

3 tool simultaneous cutting
Renowned Miyano accuracy
High productivity with fast cycle times
Versatile tool layout

Superimposition control allows simultaneous cutting with two tools at the main spindle (SP1), or with three tools when the sub spindle (SP2) is included, shortening cycle times.

Miyano BNA-42GTY

Additional Details

Miyano BNA-42GTY

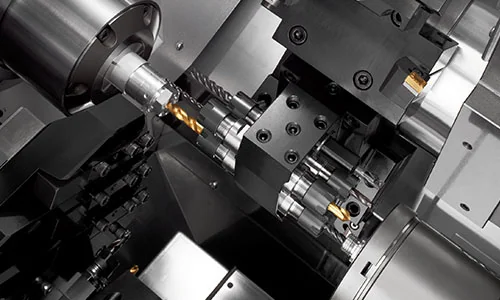

Tooling Area

Miyano BNA-42GTY

Superimposition control allows simultaneous cutting with two tools at the main spindle (SP1), or with three tools when the sub spindle (SP2) is included, shortening cycle times.

Miyano BNA-42GTY

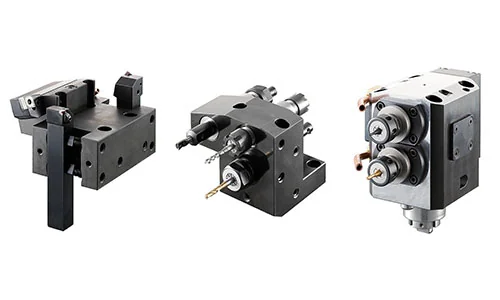

The turret has 8 stations, but the half-indexing mechanism makes it possible to mount tools at up to 16 positions. The use of optional multiple tool holders can further increase the number of tool positions.

Functions

Standard NC functions

  • Background editing
    User macro
    Geometry & wear offset
    Number of tool offset: 80 pairs
    Part program storage capacity 320m
    RS232C Interface
    Run hour/parts number counting
  • Total & preset counter
    C-axis for Main (left) and Back (right) spindles
    Milling interpolation
    Helical interpolations
    Canned cycle for drilling
    Chamfering / Corner R
    Constant surface speed control
  • Multiple Repetitive Cycle
    Rigid tapping for SP1/SP2 and revolving tool
    Skip function
    Tool nose R compensation
    Y-axis offset
    Polygon Turning



Functions

Optional NC functions

  • Network I/O function
Accessories

Standard Accessories

  • Main spindle chucking device
    Back spindle chucking device
    Filler tube assembly
    Spindle air blow (SP1)
    Inner high pressure coolant & air blow (SP2)
    Spindle disk brake (SP1 & SP2)
  • Coolant system (with level detector)
    3-color signal tower
    Lubricating oil supply unit (with level detector)
    Machine relocation detector
    Door lock
    Workpiece conveyor
  • Cut-off confirmation
    Chip conveyor
    Recommended tool package
    High pressure coolant device



Accessories

Optional Accessories

  • SP2 Chucking system for B42 (compatible with DIN173E) (~42mm)
Specifications

Machince Specifications

ITEM BNA-42GTY
Machining capacity: Max. machining diameter of bar work (SP1) 42mm
Machining capacity: Max. machining diameter of bar work (SP2) 42mm
Machining capacity: Max. machining length 110mm
Spindle: Number of spindle 2
Spindle: Spindle speed range (SP1) 6,000 rpm
Spindle: Spindle speed range (SP2) 5,000 rpm
Spindle: Spindle minimum index angle (SP1) 0.001°
Spindle: Spindle minimum index angle (SP2) 0.001°
Turret: Number of tools 21 ~ 45
Turret: Gang tool post (Front Turning) 3
Turret: Gang tool post (Front revolving) 3
Turret: Gang tool post (Back ID tools) 5
Turret 8 Sta.
Turret: Revolving tool 8 Sta. available
Turret: Shank size of turning tool 3/4"
Turret: Diameter of sleeve holder 1"
Turret: Revolving tool chuck ER16
Turret: Tool spindle speed range 6,000 rpm
Slide stroke: Axis stroke/Rapid speed (Z1 axis) 110mm 30m/min
Slide stroke: Axis stroke/Rapid speed (X1 axis) 95mm 24m/min
Slide stroke: Axis stroke/Rapid speed (Y1 axis) 260mm 30m/min
Slide stroke: Axis stroke/Rapid speed (Z2 axis) 235mm 20m/min
Slide stroke: Axis stroke/Rapid speed (X2 axis) 140mm 20m/min
Slide stroke: Axis stroke/Rapid speed (Y2 axis) 70mm 12m/min
Slide stroke: Axis stroke/Rapid speed (Z3 axis) 360mm 20m/min
Slide stroke: Axis stroke/Rapid speed (X3 axis) 190mm 12m/min
Motors: Spindle drive (SP1) 11/7.5kw (15min/cont.)
Motors: Spindle drive (SP2) 5.5/3.7kw (15min/cont.)
Motors: Revolving tool drive (Turret) 1.0kW
Motors: Revolving tool drive (Gang tool) 1.5kW
Power supply: Electrical capacity 34KVA
Power supply: Air supply 0.5MPa
Coolant tank capacity 165L
Machine dimensions: Machine height 1,680mm
Machine dimensions: Floor space 2,350 W × 1,475mm D
Machine dimensions: Machine weight 3,740kg
